DSPIC30

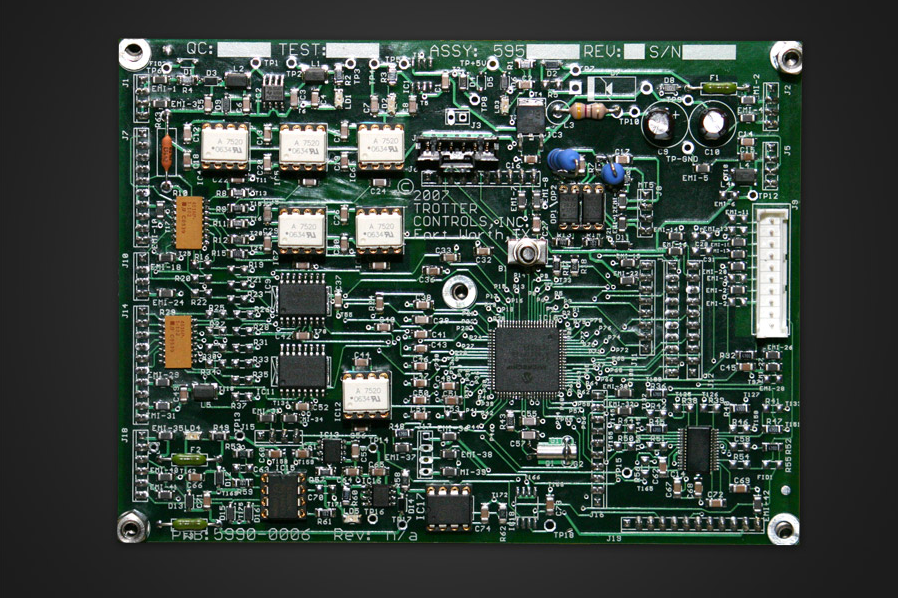

The DSPIC30 Core Module for Display & Control Applications is a circuit board that consists of a MicroChip DSPIC6014A digital signal processor and various voltage regulators, communication buffers, analog opto-isolators, RS-232/SPI communication buffer and other support components.
This assembly is suitable for a variety of display and control applications, and can be provided in a housing with integral power supply, LCD or Vacuum Fluorescent display, and operator interface switches.
Features
DSPic 6014A Microprocessor
Internal EEPROM
8K data space
144K program space
30 MIPS processing speed
16 analog input channels, 12 bit resolution (5 channels optically isolated & bi-polar input range)
2 PWM output channels
40+ Digital I/0
Five optically isolated bi-polar analog input channels with hardware input filters & scaling resistors
Optically isolated I2C bus
Buffered RS232/SPI #1 Bus with EMI filters
Second TTL level SPI Bus
Two 0 ~ +5G accelerometers with internal diagnostics
On board MicroChip 24A32AP EEPROM memory
On board MicroChip MCP9800 temperature sensor
On board 1 amp regulators for microprocessor and analog isolation
On board optically isolated pseudo H-Bridge / PWM channel to drive hydraulic servo valves or other differential loads
On board PWM channels for analog output(s)
6 layer PCB with internal ground and shield planes for noise free operation
Wide Temperature range: -20C ~ 65C
