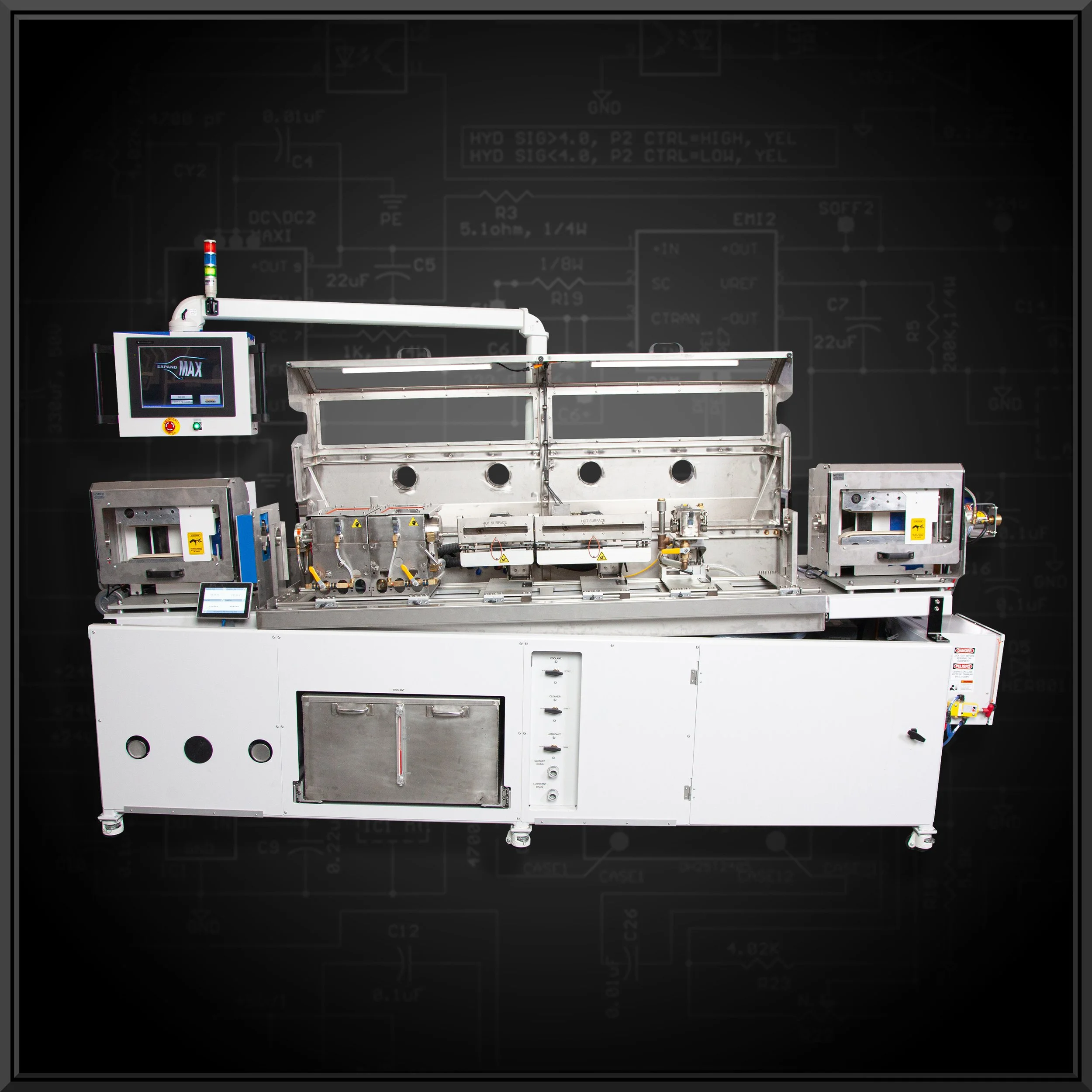

The Thermoplastic Expansion System (TES) is a medical grade heat shrink tubing machine. This work-cell is for use in industrial or medical applications when precise process control and datalogging is required. It features two independent precision tube heater zones and real-time expanded tubing size measuring with its integrated precision three-axis laser measurement system.

This system includes an unspooler that supports drag control, allowing for quick tooling changeover for rapid change between tubing sizes and adjustable infeed and outfeed clamping pressures. Servo motors provide precise infeed and outfeed speed control up to 30 feet per minute (10 feet per minute nominal). Wetted areas are fully stainless steel and corrosion-resistant with a built-in washdown sprayer and drain pan. The TES also has automatic, on-demand heat transfer fluid delivery for reduced usage and waste.


Avalible Options

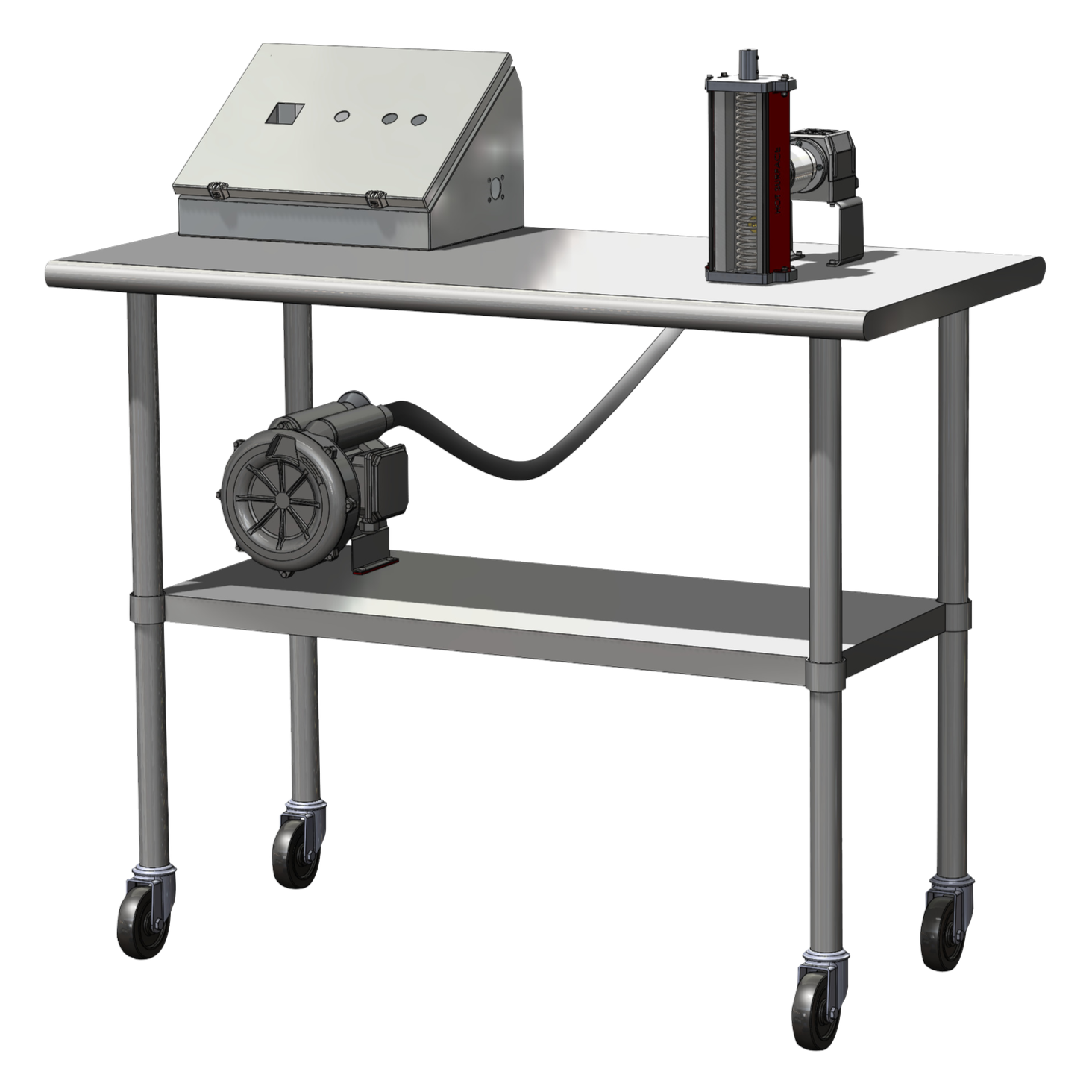

RECOVERYMAX hot air recovery workstation is a vertical production QC oven and blower system for finished goods recovery diameter verification. The unit is mounted to a sturdy stainless steel worktable and has a digital readout and controls for the oven temperature.


Features

  • Fully instrumented process control and recipe management system

  • HMI control / recall of process parameters

  • Caterpillar style input / output tube tractor

    • Servo motors for precise infeed and outfeed speed control

    • Up to 30 ft/min throughput (10 ft/min nominal)

    • Electronically adjustable tractor clamp pressure

  • Electronically controlled nitrogen tubing expansion pressure (100 ~ 1000 PSI)

  • Heat Source

    • 2 zone hot air with heat transfer liquid heat transfer technology (3rd zone optional)

    • Automatic, on-demand heat transfer fluid delivery system

  • Stainless steel and corrosion-resistant wetted areas

  • Quick expansion die tooling changeover

  • Built-in heat transfer liquid containment, washdown sprayer, and drain pan

  • Alcohol cleaning station and exit air-wipe system

  • Infeed tubing drum de-spooler with electronic drag control

  • Precision real time laser measurement of finished tubing diameter

  • Process parameters are recorded with built-in datalogger hardware / trend graphs


Additional Features

  • Product Size Range

    • Customer Specified

  • Oven Temperature range: Ambient ~ 400 deg F

  • Electronically controlled tubing expansion Nitrogen regulator (100 ~ 1,000 PSI)

  • Machine Guards with integrated safety controller protect the operator

  • Payoff Feedstock Spool System with electronic drag control

  • Inlet / Outlet Ionized-Air Wipe Static Eliminators

  • Infeed/Outfeed Pullers

  • Lubrication Feed Station

  • Dual zone hot air / heat transfer fluid ovens

  • Die Expansion / Cooling Station

  • Water Circulation Pump & Water Quench Tank with isolated chiller connections

  • Alcohol wash station & Alcohol pump station

  • Real time tubing diameter measurement laser

  • Integrated datalogger / trending system
